Chemical Fume Hood

Product Description

This fume hoods are the modular products with characteristics on high precision and convenient assembling.
Provide with a series of fume hoods make of different materials which can choose following series of products for responding to different use conditions.
Product Details
Specification

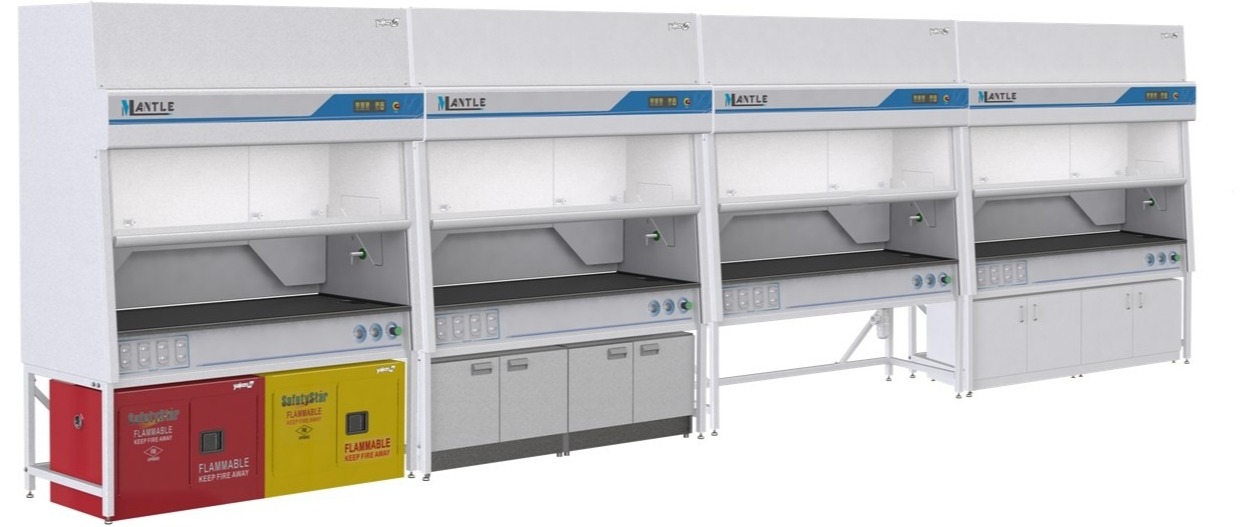

Chemical Fume Hood





Benefits and Necessity of Fume Hoods in Laboratories

  • Corrosion Resistance - Stainless steel resists acids and alkalis, making it suitable for various chemical experiments.
  • Versatility - Suitable for chemistry, biology, pharmaceuticals, and more.
  • Good Ventilation Performance - Ensures stable airflow for a comfortable working environment.
  • Minimizes Odor Retention - Quickly expels harmful gases to maintain fresh air.
  • Protects Personnel Safety - Isolates harmful gases, preventing toxic inhalation.
  • Reduces Fire Risk - Withstands high temperatures and prevents sparks from igniting flammable materials.
  • Enhances Experimental Accuracy - Minimizes environmental contamination affecting results.
  • Maintains a Good Working Environment - Reduces chemical gas concentration for better working comfort.
  • Reduces Health Risks* - Lowers the dangers of long-term exposure to harmful gases.
  • Improves Operational Efficiency - Provides stable airflow to prevent gas leakage affecting work.
  • Ensures Regulatory Compliance - Meets environmental and safety standards required for laboratories.
  • Protects Equipment - Prevents chemical gases from corroding other instruments and devices.

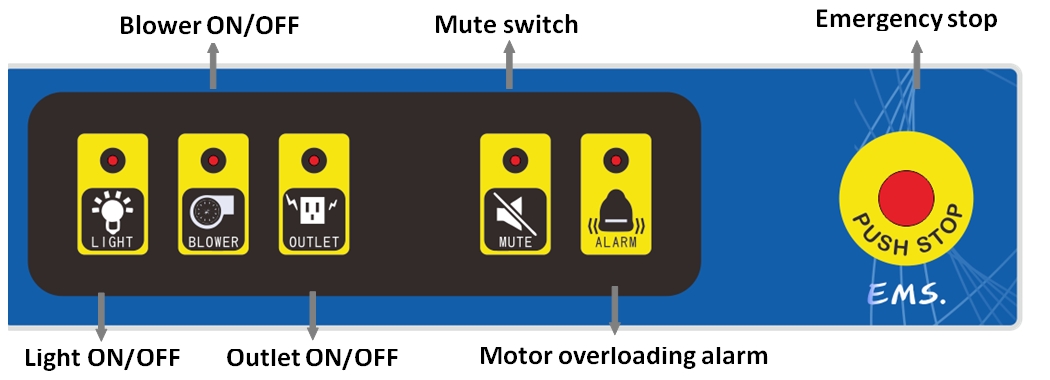

Membrane Control Panel

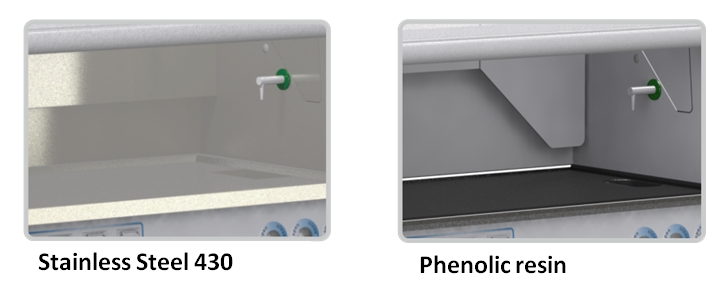

Lining Material Options

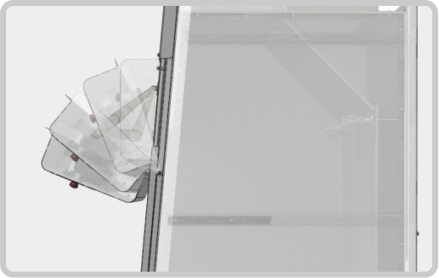

Flip-down Cover


Easy maintenance & light tube replacement.

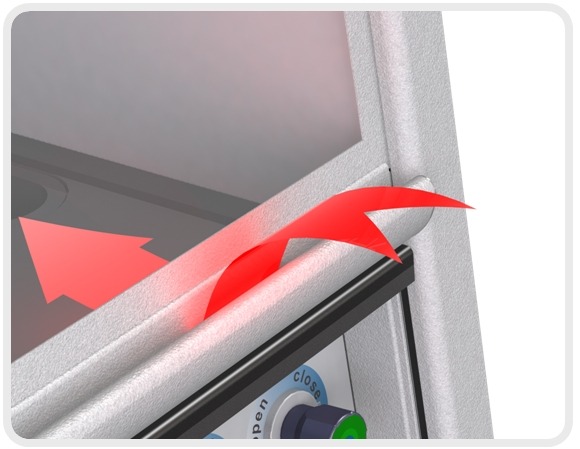

Aerodynamic Sash Handle

The aerodynamic sash handle shape allows to optimize air flow, increasing ventilation efficiency as well as decreases air flow turbulences.

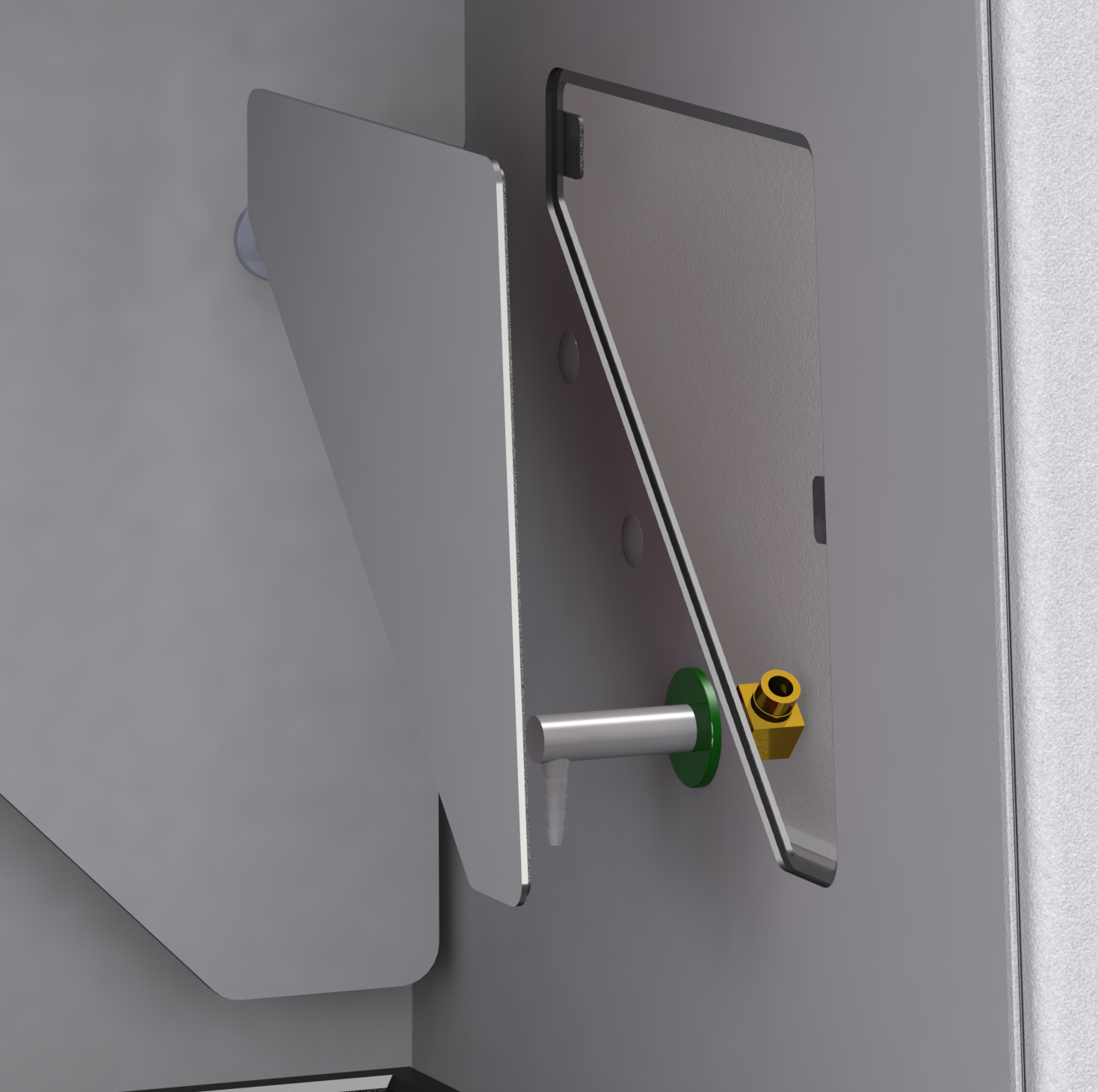

Maintenance Board Inside


Can be removed inside for gas cock installation and maintenance.

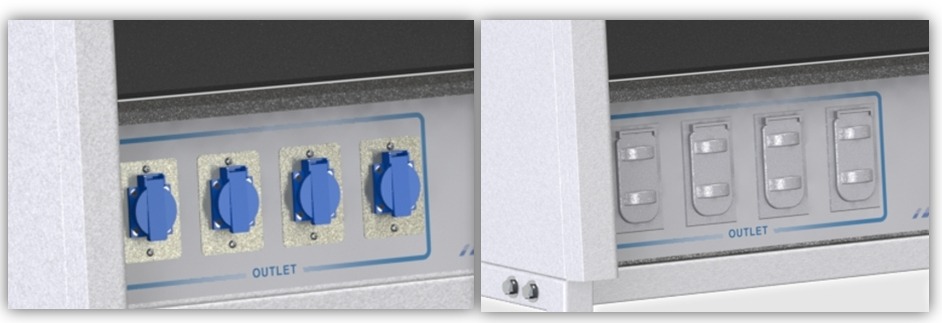

Electrical Outlets with Splash-proof Cover


Qty: 115V x 2, 230V x 2 or 230V x 4Cupboard Options

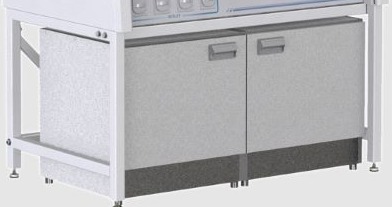

Cupboard Options



Wooden cupboard

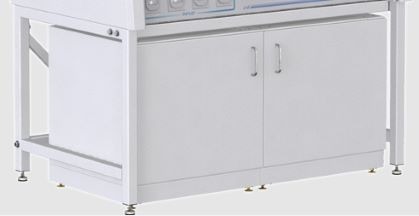

Metal cupboard

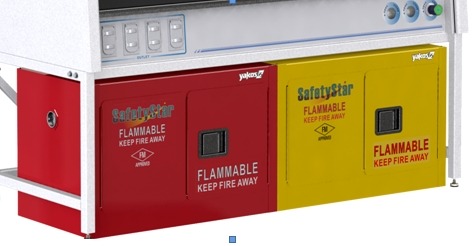

Safety cabinet



Model No. Table

Model No. Power Lining Material External Dimensions Outlet Light
HAS-120-CA-A 3Φ230V
1Φ230V
1Φ115V
Phenolic resin 1204*782*630/2284 mm 115V x 2
230V x 2
T5 21W x 2
HAS-150-CA-A Phenolic resin 1504*782*630/2284 mm T5 28W x 2
HAS-180-CA-A Phenolic resin 1804*782*630/2284 mm T5 36W x 2
HAS-120-CB-A 3Φ230V
1Φ230V
Phenolic resin 1204*782*630/2284 mm 230V x 4 T5 21W x 2
HAS-150-CB-A Phenolic resin 1504*782*630/2284 mm T5 28W x 2
HAS-180-CB-A Phenolic resin 1804*782*630/2284 mm T5 36W x 2
HAS-120-CA-B 3Φ230V
1Φ230V
1Φ115V
SUS#304 1204*782*630/2284 mm 115V x 2
230V x 2
T5 21W x 2
HAS-150-CA-B SUS#304 1504*782*630/2284 mm T5 28W x 2
HAS-180-CA-B SUS#304 1804*782*630/2284 mm T5 36W x 2
HAS-120-CB-B 3Φ230V
1Φ230V
SUS#304 1204*782*630/2284 mm 230V x 4 T5 21W x 2
HAS-150-CB-B SUS#304 1504*782*630/2284 mm T5 28W x 2
HAS-180-CB-B SUS#304 1804*782*630/2284 mm T5 36W x 2
