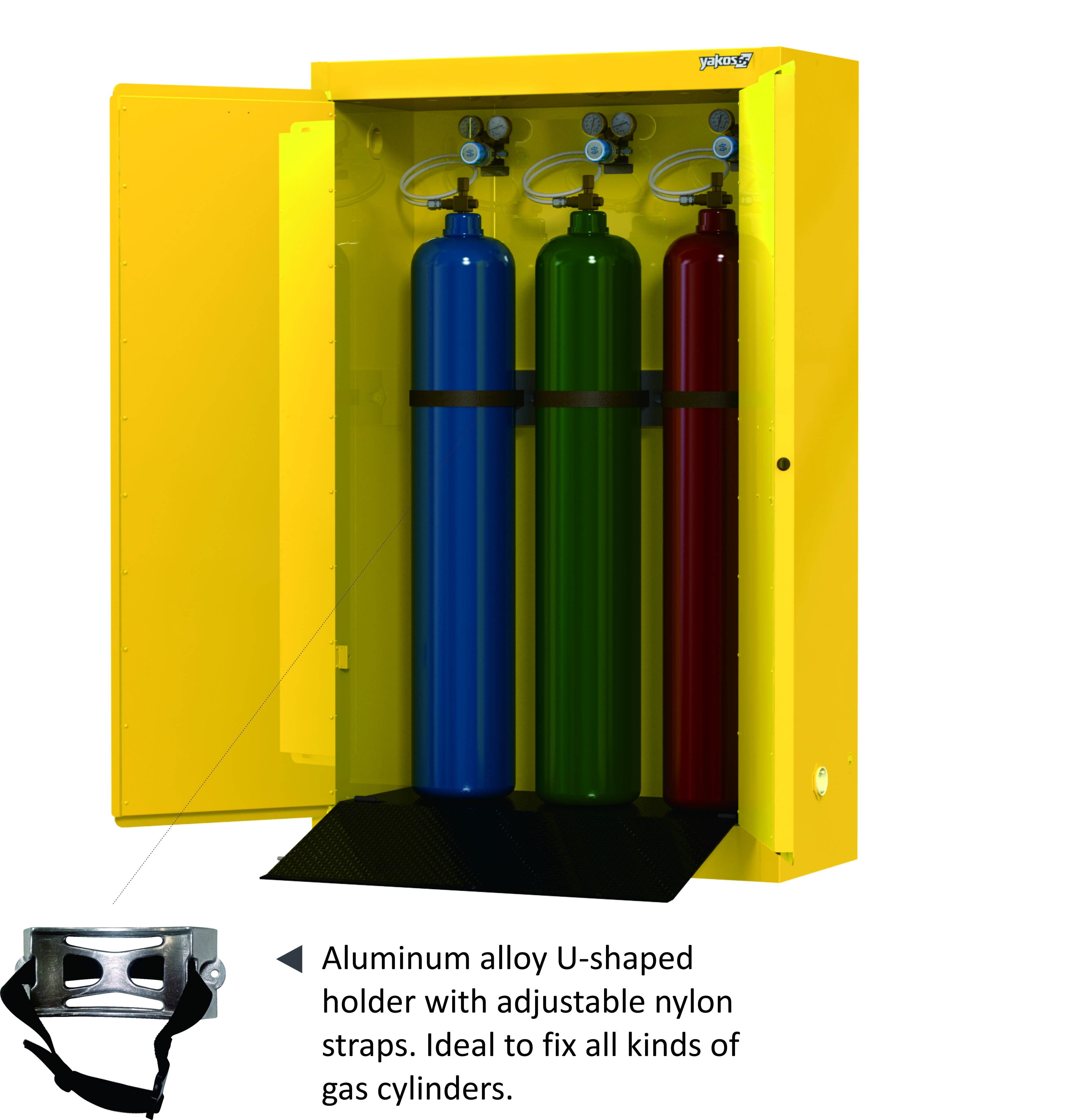

Gas Cylinder Cabinets

Product Description

Gas cylinder Cabinets used in laboratories may contain flammable, toxic, or high-pressure gases. Improper storage can lead to fires, explosions, or gas leaks. Fireproof gas cylinder cabinets provide a controlled storage environment, reducing safety risks.
Product Details
Specification
  • FM Approvals certified, comply with NFPA & OSHA regulations.
  • Heavy-duty steel construction.
  • Lead-free epoxy powder coating finish.
  • Double wall construction with 38mm air space efficiently isolates from combustion.
  • 3-point self-latching doors with all non-spark latching.
  • Paddle handle locking latch.
  • 1.2mm cold-rolled continuous piano hinge.
  • Adjustable zinc plated leveling feet.
  • Dual 2” vents with caps and flame arrester placed at both side of cabinets.
  • Large warning label.
  • Static grounding wire (UL listed).
  • 2 inch deep leak-tight containment sump.



Capacity
gallon
Ext. Dim.
W*D*H mm
Int. Dim.
W*D*H mm
Door Type Order No. Approval Compliance
45 1090*460*1720 1007*375*1574 Double door/manual close M2045Y-G FM NFPA, OSHA
45 1090*460*1720 1007*375*1574 Double/self-close S2045Y-G FM NFPA, OSHA
22 595*460*1720 512*378*1574 Single door/manual close M1022Y-R-G FM NFPA, OSHA
22 595*460*1720 512*378*1574 Single door/self-close S1022Y-R-G FM NFPA, OSHA
