PRODUCTS Vent-Filtration Box

Vent-Filtration Box

Product Description

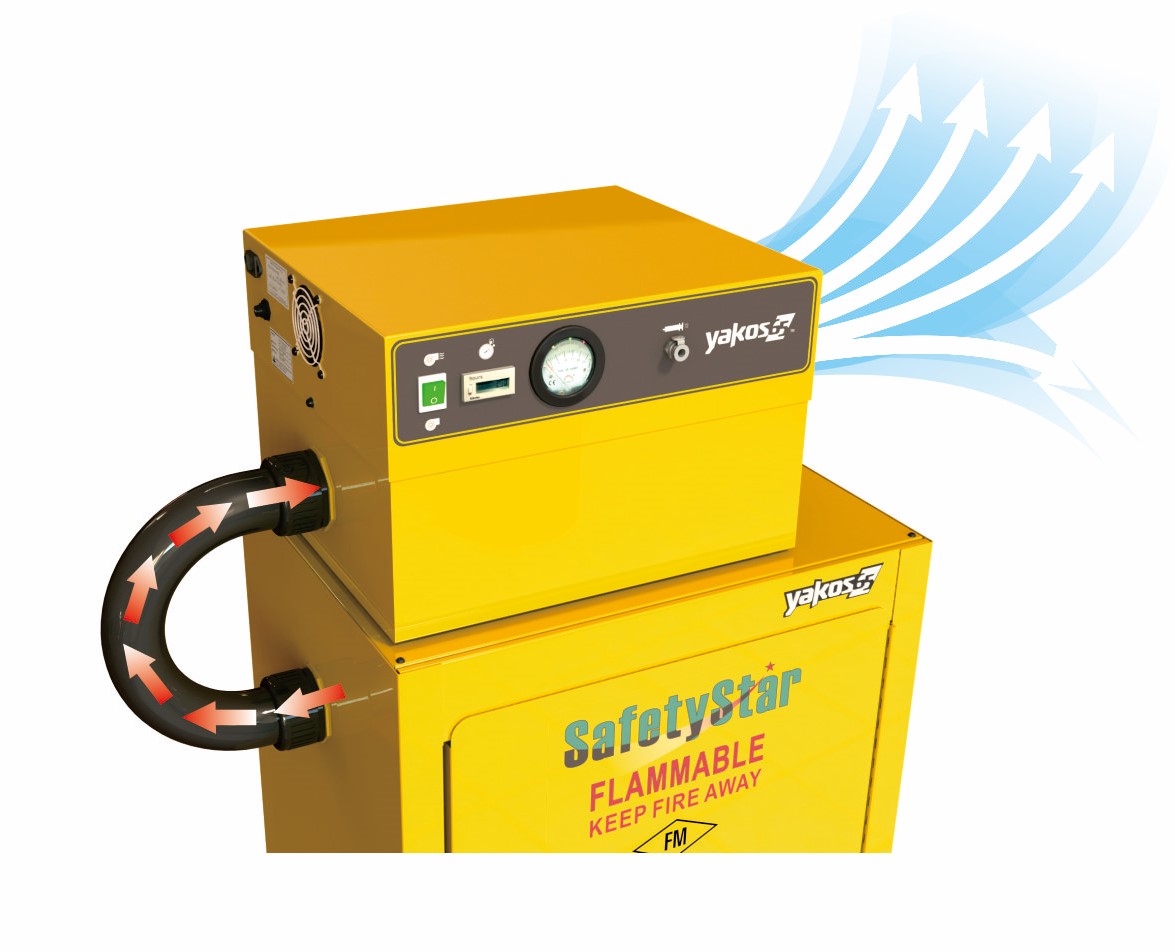

In a laboratory setting, a Flammable Safety Cabinet is primarily used to store flammable liquids, reducing the risk of fire hazards. However, these chemicals may release volatile organic compounds (VOCs) or other harmful gases during storage, which can negatively impact air quality and pose potential health risks to personnel. Therefore, installing a Vent-Filtration Box on a flammable safety cabinet is not only convenient but also highly necessary.

TAGS：

Product Details
Specification

Built-in an excellent energy efficiency brushless DC blower and widely used filters for most of solvents and chemical. It serves as an air purification system for most of chemical safety cabinet on the market. Effectively reduce the concentration of chemical solvent vapors inside the cabinet and provide the best protection for laboratory personnel.

APPLICATIONS:
Flexible cabinet ventilation for storage of:
  • Flammable chemicals
  • Paints, ink
  • Corrosive chemicals
  • Pesticides
  • Toxic materials

MAIN FEATURES

  • Capture toxic vapors, odors and smells generated by chemicals stored in a safety or chemical cabinet.
  • Protection of chemical inhalation risks.
  • Simple and fast installation.
  • No exhaust ductwork needed.
  • Fits to most of available flammables safety cabinets on the market.
  • Extra-low energy consumption of 20 watts.

Model:ECD-027-AA-A


1.Construction: SECC galvanized steel with epoxy powder  coating
2.Overall Dimensions: 440*380*290mm
3.Filter: Active coal filter for most of solvent, organic  vapor  removal
4.Airflow: 60 m3/h (3.54 CFM)
5.Noise: <55 dBA
6.Hose: Stainless steel, 60cm, flexible
7.Power consumption: 20 watt
8.Power voltage/Hz: 88~264 VAC / 47~63 Hz

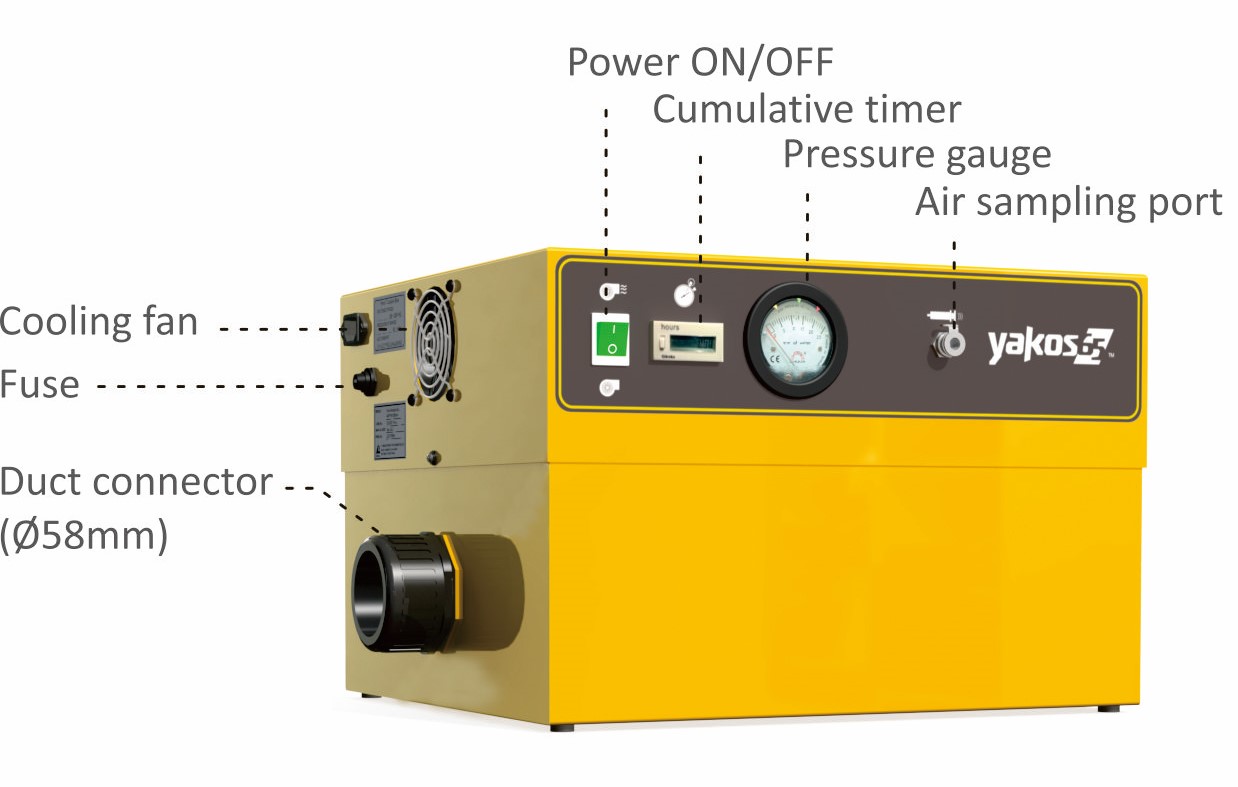

9.Air sampling port: Sampling access to allow the filter saturation to be tested
10.Shipping kg: 20 kg
11.Shipping W*D*H mm: 700*460*300 mm
12.Accessories:
  • Pressure gauge(0~25 mmAq) x 1
  • Operation manual x 1
  • Flexible duct60 cm(Ø58mm) x 1
  • Duct connector(additive available)(Ø58mm) x 2
  • AC power cordX1.2 meter x 1
  • Active coal filter x 2
