Stand Alone Housing System

Product Description

In recent years, Zebrafish (Danio Rerio) has developed to study the important pattern of vertebrate embryonic development. Its merit includes: spawning during the photoperiod, fertilized externally, embryos are transparent, short embryo development periods (2-3days), the process of organ formation is easy to observe, short maturity period (3 months), physical and chemical method can be use to produce different characteristics variety of fish. Zebrafish has become in the research for cancer, cardiovascular disease, organ growth, vertebrate embryonic & nerve growth development and toxic screening for medical characteristics purpose also act as an important factor during the research. At the same time, zebrafish is tested against new medicine for cell development before it further to mouse specimen experiment. Therefore more and more research institutions, hospitals and pharmaceutical company establish the zebrafish laboratory and put it into different area of research. Foreseen the importance of zebrafish in the biomedicine research field,

TAGS:

Product Details
Specification

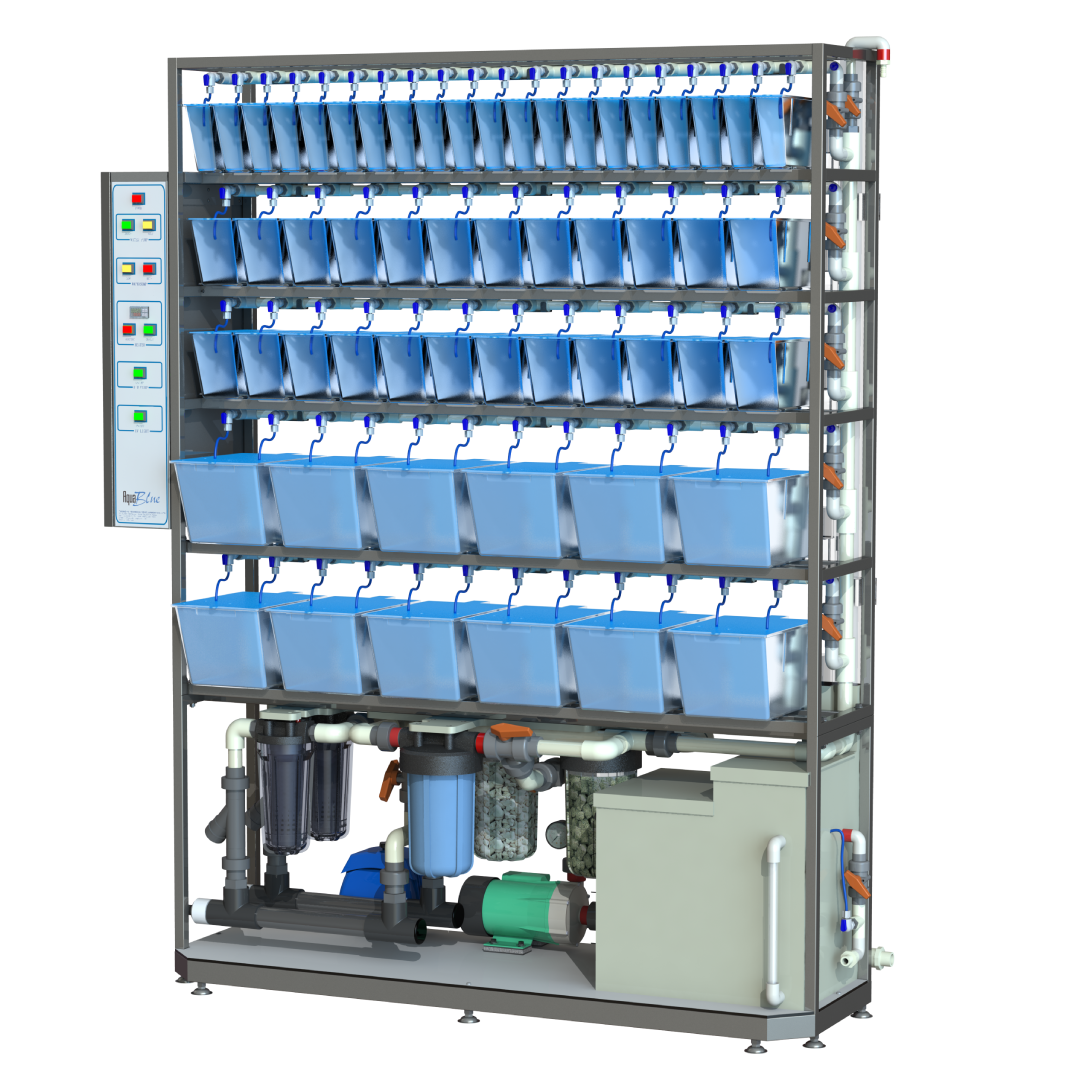

Stand Alone Housing System

  • Suitable for laboratory scale application.
  • Able to undertake quarantine, breeding and reproducting.
  • Equipped with well-prepared and stand-alone circulation & filtration system.
  • Rack material: stainless steel #316. All filters can be changed without turning off the system.
  • An independent water inlet valve is mounted to every layer of rack and each fish tank.
  • Water changing rate: 5-10 times /hour.
  • Optional devices: pH meter, illumination, DO (dissolved oxygen) meter, conductivity meter.

Model No.

Description

Dimensions

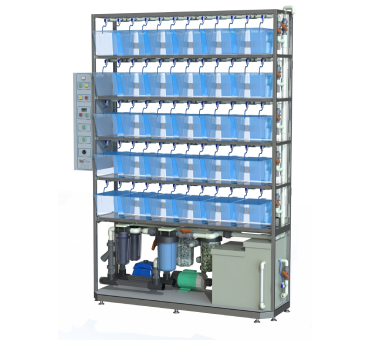

AAA-037-AA-A 5 shelf, single-side (10L*12 tanks, 3L*24 tanks, 1.5L*20 tanks) 1758*535*2143mm
AAA-050-AA-A 5 shelf, single-side (10L*30 tanks) 1758*535*2353mm

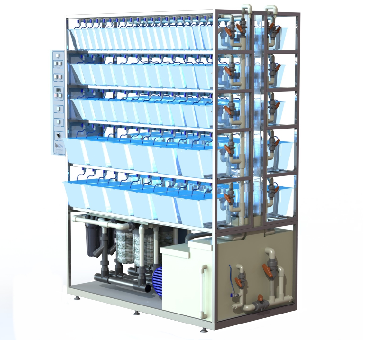

AAB-074-AA-A 5 shelf, double-side (10L*24 tanks, 3L*48 tanks, 1.5L*40 tanks) 1758*850*2143mm

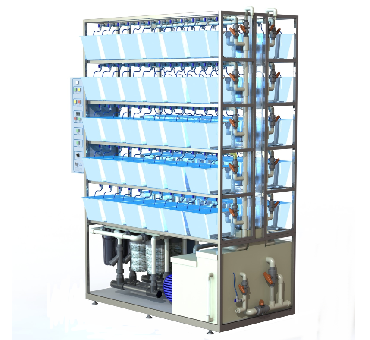

AAB-100-AA-A 5 shelf, double-side (10L*60 tanks) 1758*850*2353mm

Fish Tanks

  • 1.5, 3 and 10 liters.
  • Material: Polycarbonate (PC).
  • Lightweight, durable against falling, 90% transmittance, autoclavable.
  • Stackable, less space occupation, ease of management.
  • Self-cleaning design.

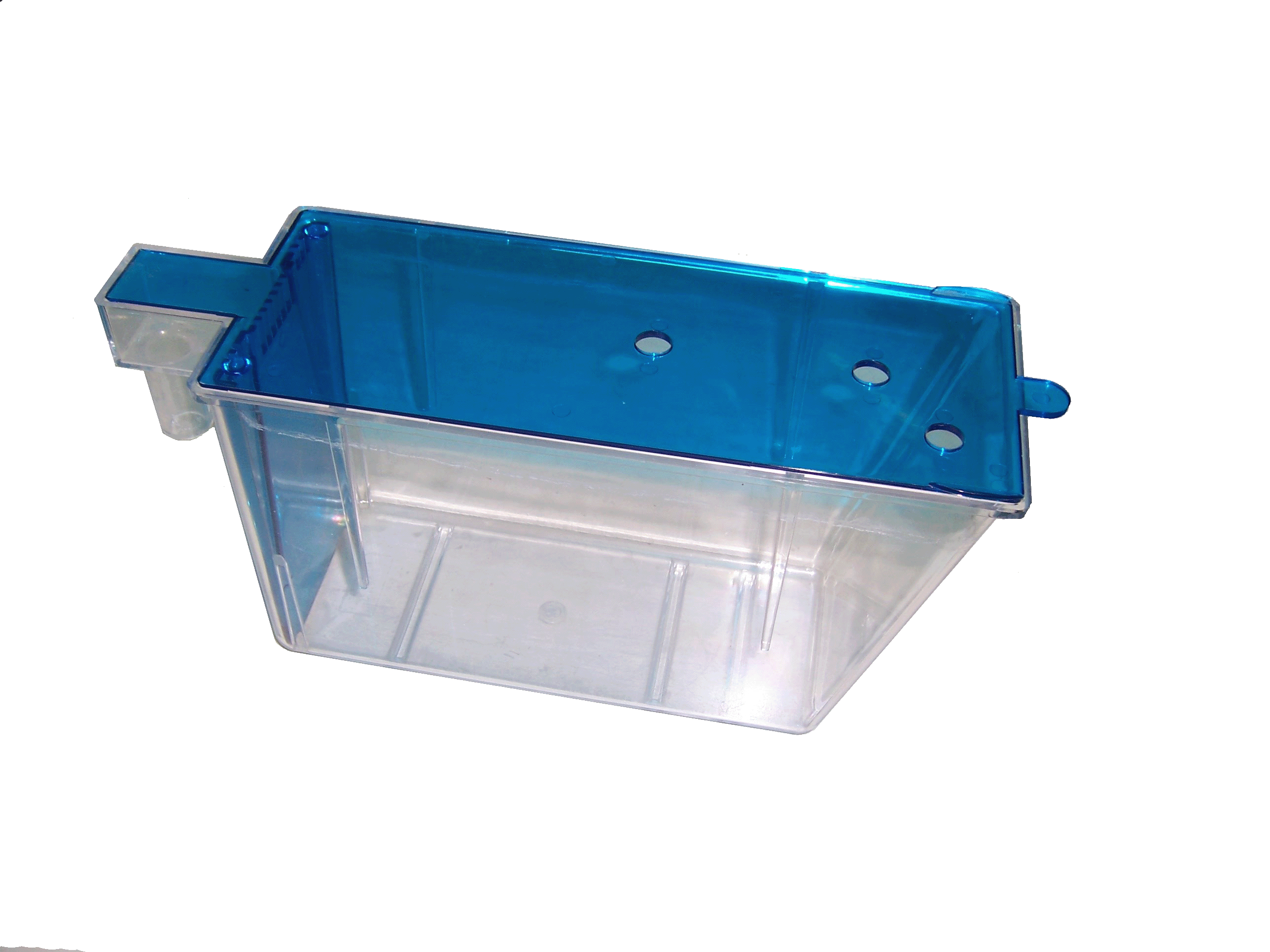

1.5 liters.

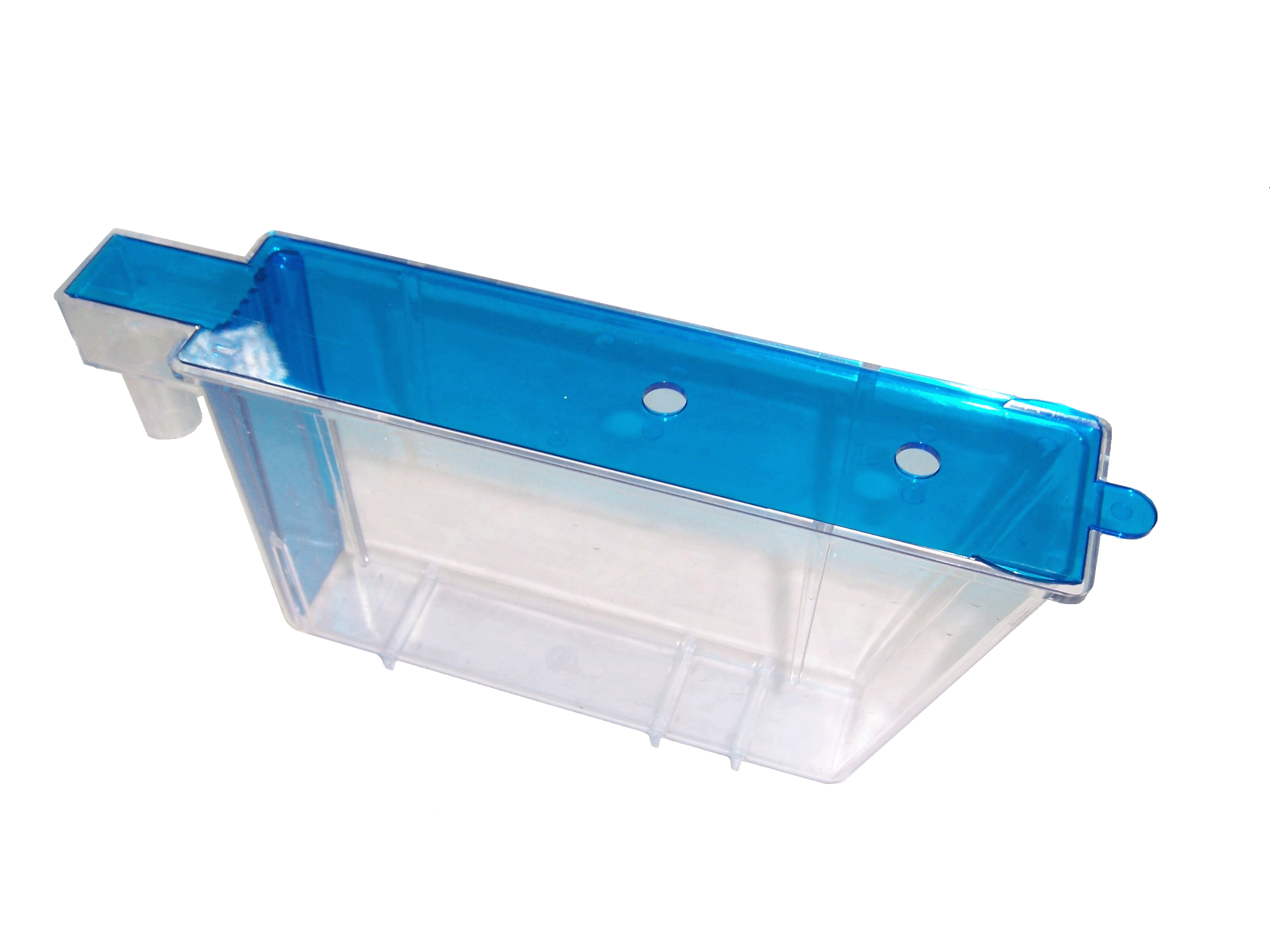

3 liters.

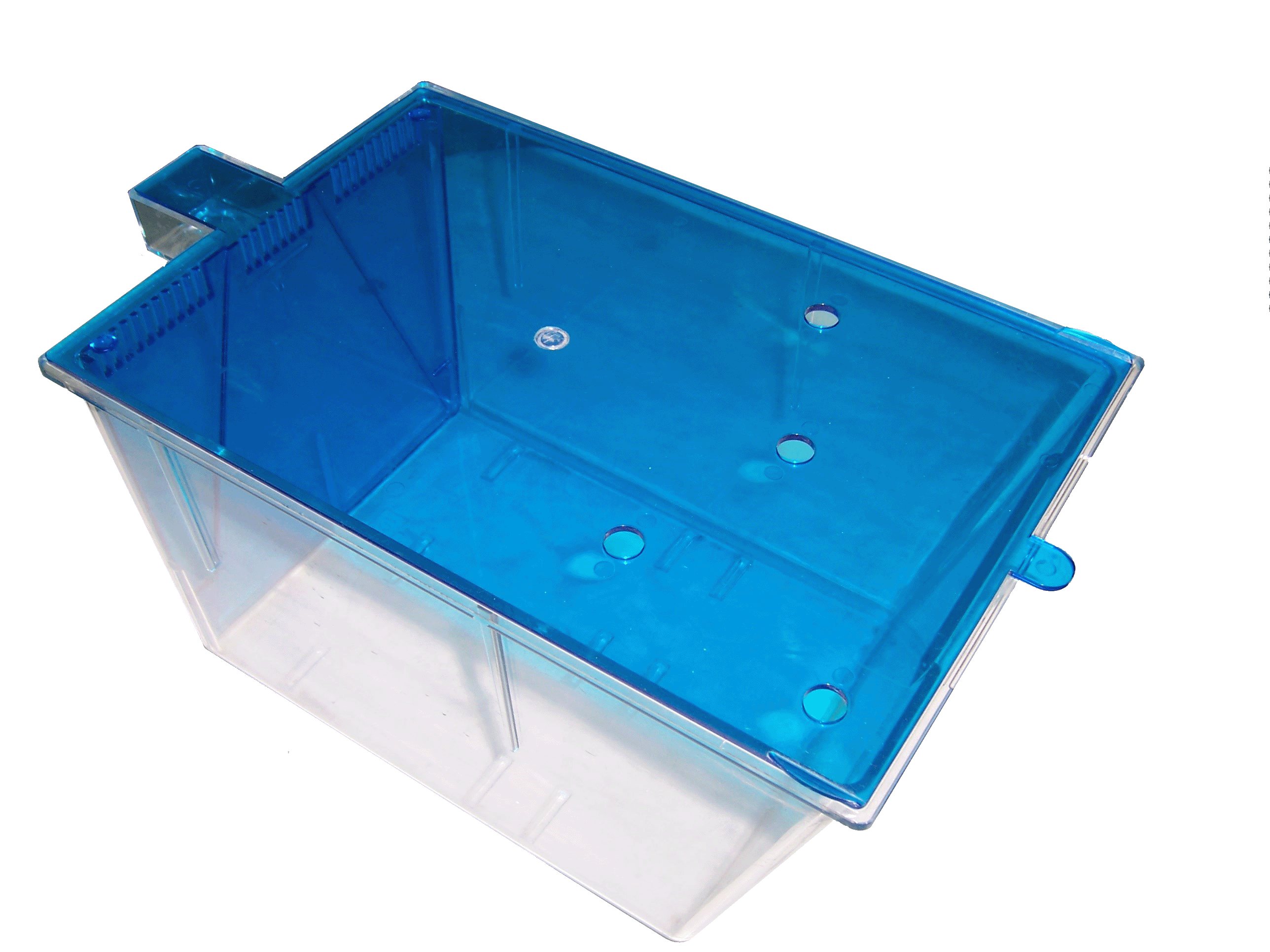

10 liters.

Filtering Medium & UV Bulb

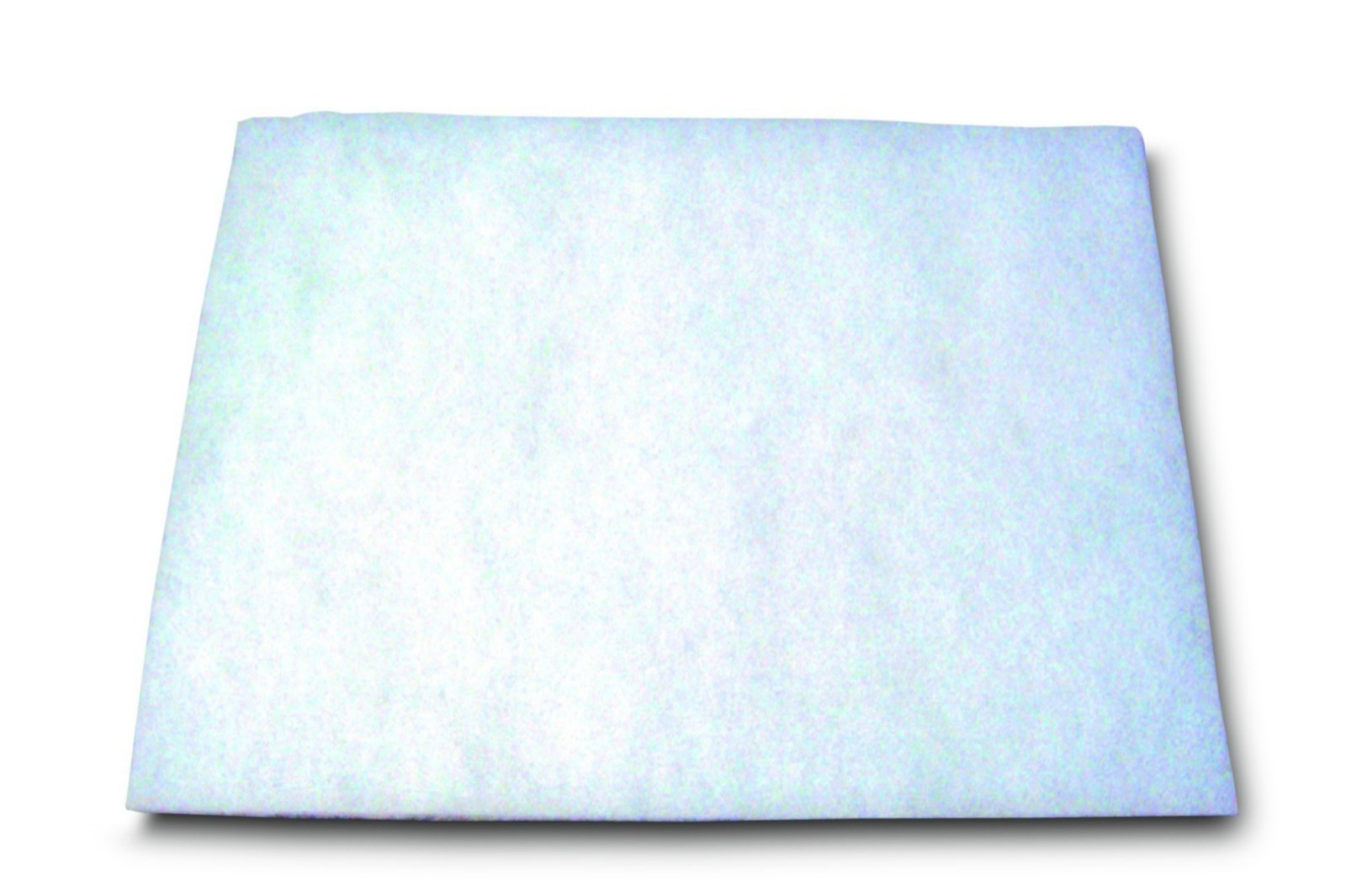

Pre-filter Pad

50 micrometer filter bag

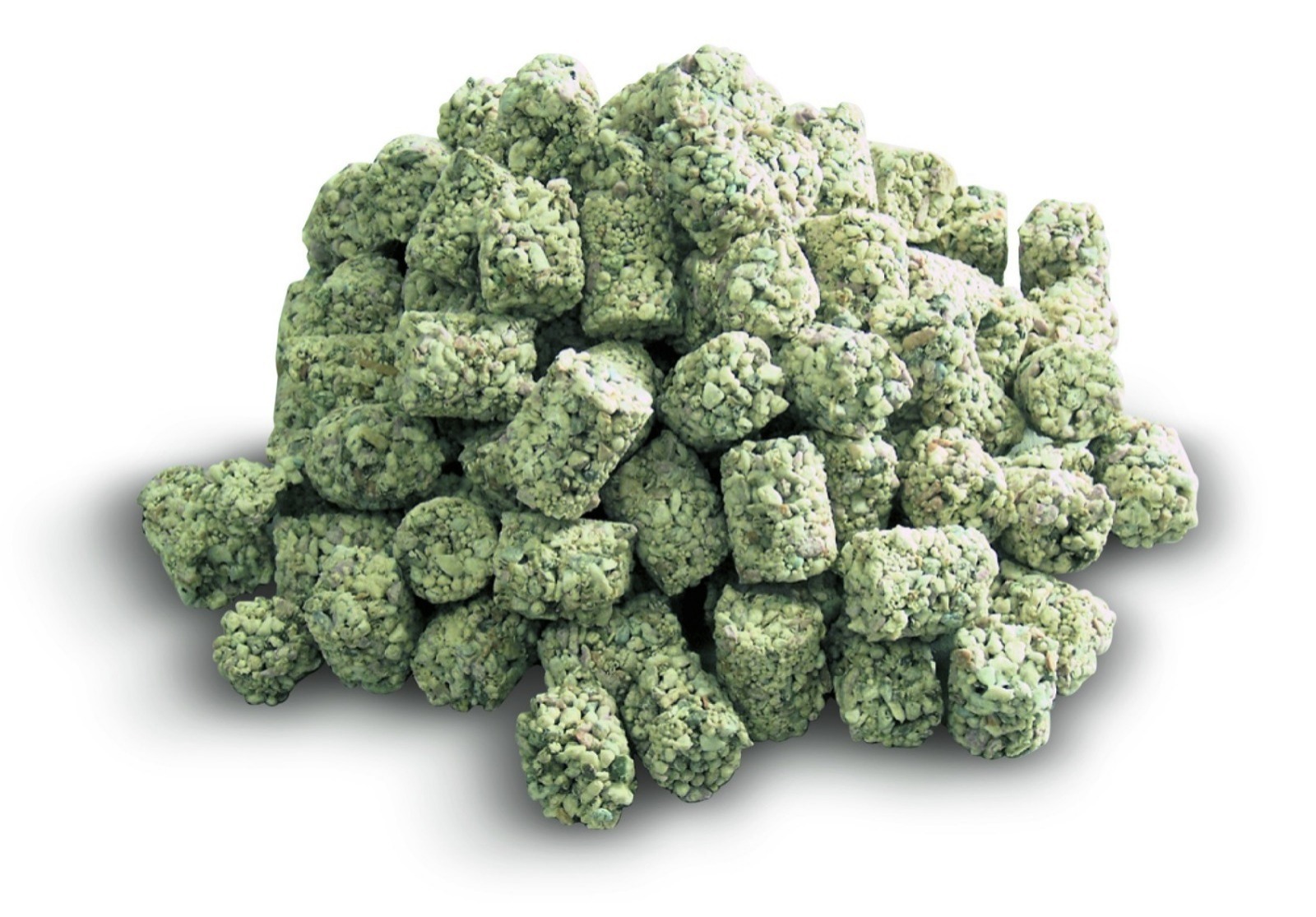

Biological Media

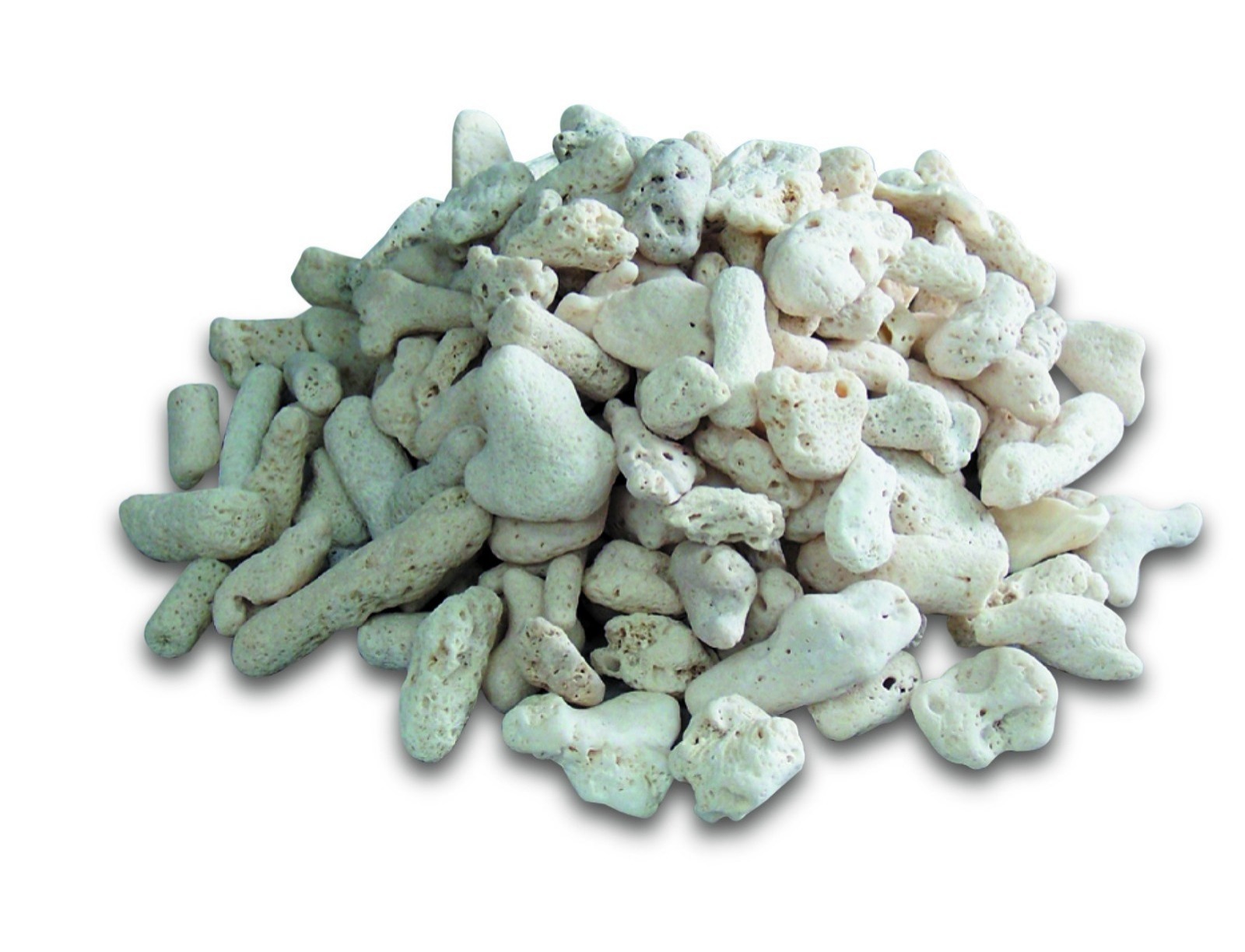

Coral Gravel

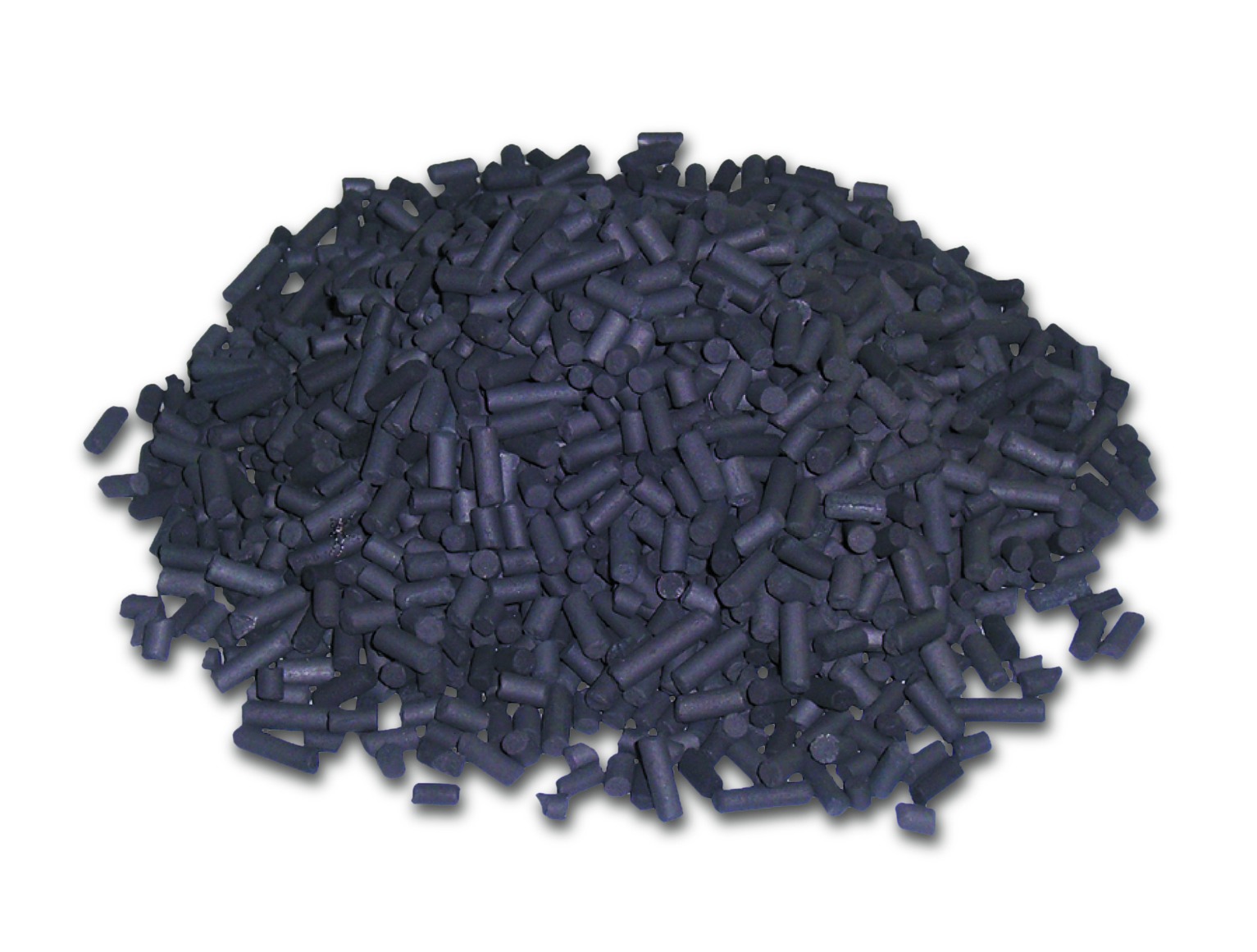

Activated Carbon

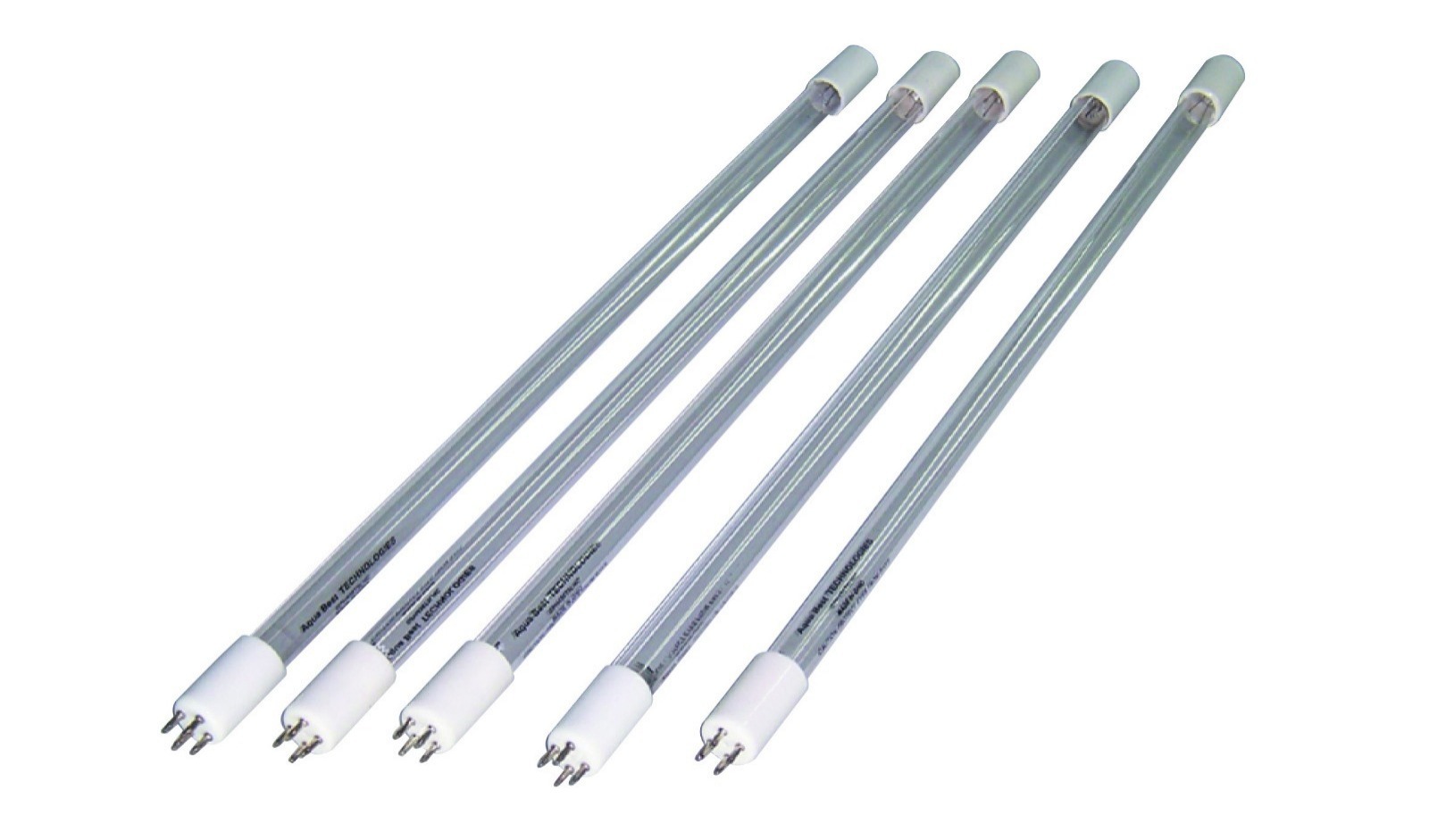

UV Bulb
